Project Objective
To modernize and optimize the Material Issue Request (MIR) process across multiple warehouses and maintenance teams — ensuring accuracy, traceability, and compliance.
Challenges
- Concurrency issues when multiple users updated MIR stages simultaneously.
- Lack of controlled workflow for handling partial receipts, returns, and batch tracking.
- No automated validations between Aircraft Type / Tail Number and Part Number compatibility.
- Manual Alternate/Substitute part management.
- No traceability of manual batch selection or print history.
- Need to import large volumes of data daily from external systems.
Solution
We implemented an advanced Custom MIR Management System fully integrated into Odoo:
Core Enhancements:

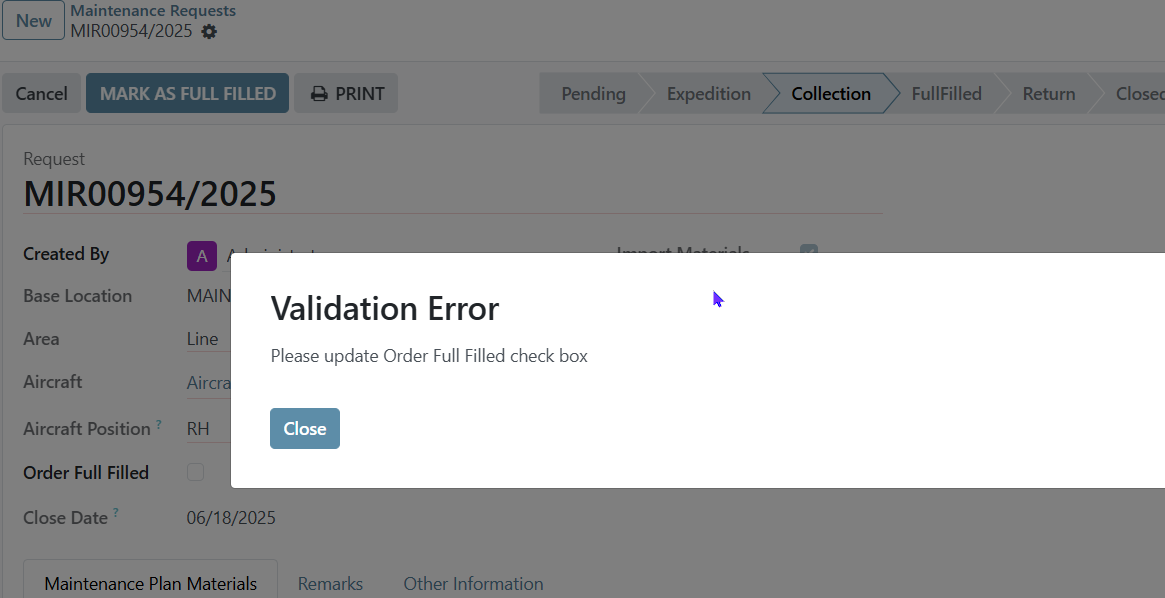

- Stage Validation: Prevented incorrect stage transitions using dynamic checks
- Partial MIR Handling: Enabled splitting of MIR lines with automatic linking and referencing
- Aircraft-Part Validation: Implemented automated checks to ensure only compatible parts are issued to specific aircraft types/tails
- Alternate/Substitute Parts: Built two-way linking within Odoo Product Master, allowing stock visibility both ways
- Batch Selection Control: Implemented FIFO alerts and tracking when users override system-picked batches

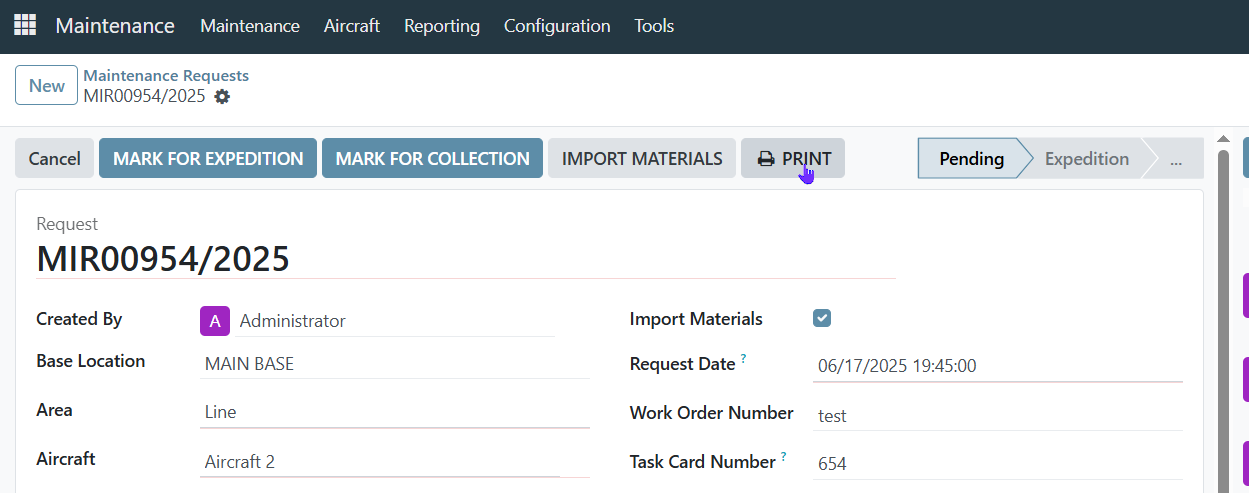

- Print Tracking: Recorded the number of print actions per MIR to ensure auditability

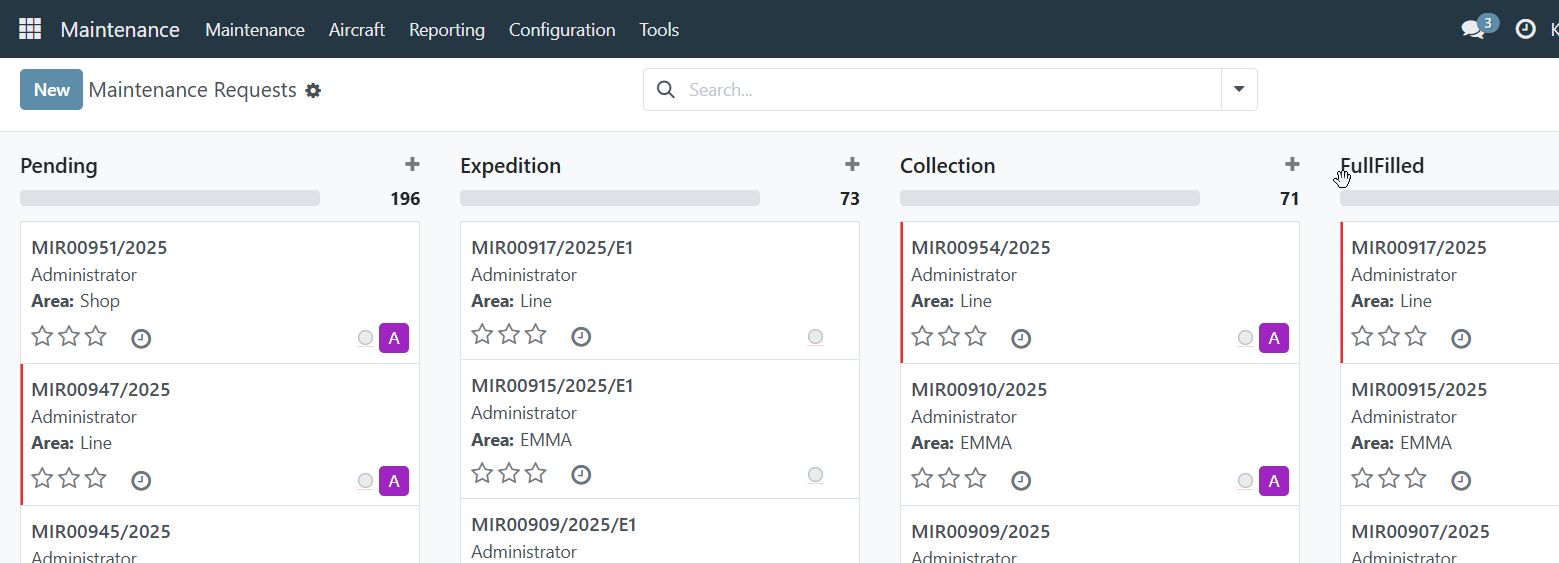

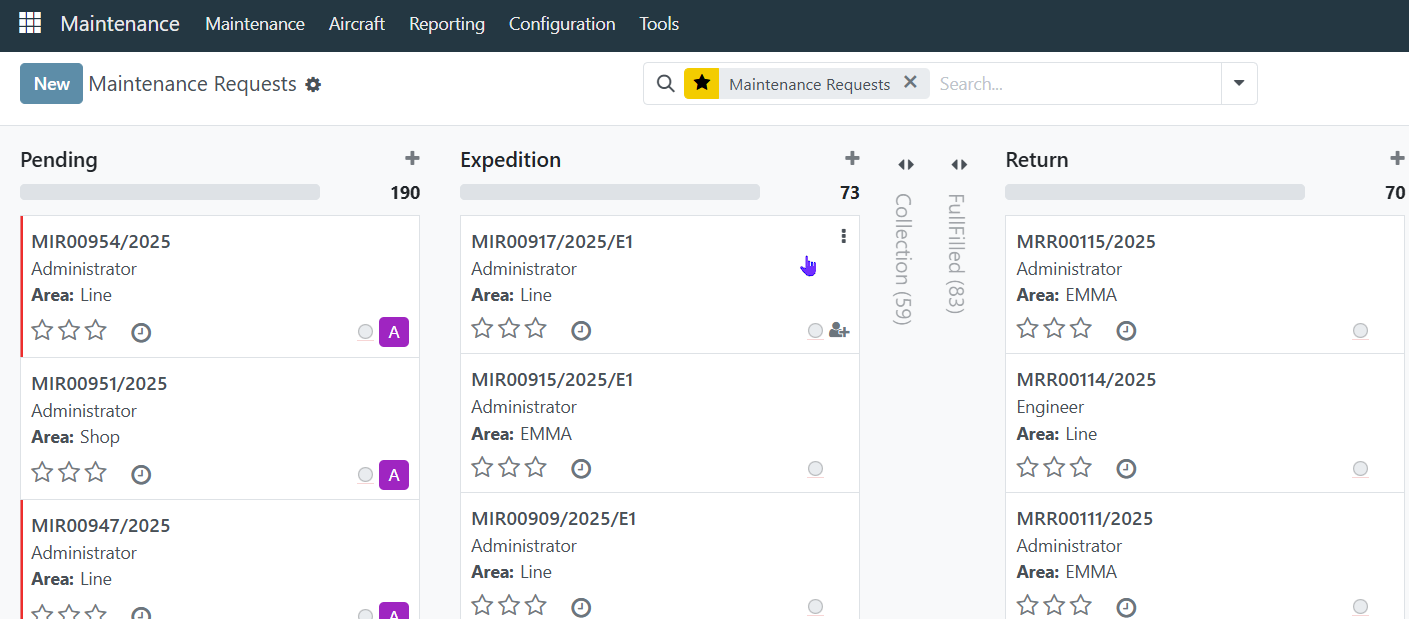

- Return Management: Improved partial return flow, introduced separate Kanban stages for tracking returns
- Excel Upload: Restricted upload permissions for Excel-based MIR line imports, ensuring role-based access.
New Modules: - Avionics Return Material Authorization (RMA)
- Component ON/OFF Record — both developed as new Odoo modules.
Data Integration:
- Automated daily imports of:
- Pending Purchase Orders
- Repair Orders
- Vendor Master data
- Engine Utilization
- Asset Lists
Note: External data imported via automated file processing integrated with Odoo backend (no FTP term used in client-facing material).
Outcomes
- 30% reduction in incorrect or duplicate MIR returns.
- 80% faster reconciliation of partial deliveries and returns.
- Improved regulatory compliance and full traceability of MIR lifecycle.
- Enhanced user experience with dynamic validations, real-time alerts, and visual workflow tracking.
Odoo Modules Used
- Odoo Inventory
- Odoo Products
- Odoo Purchase
- Custom MIR Management Module
- Custom RMA & Component ON/OFF Modules
